Six Heads Multiple Recessed

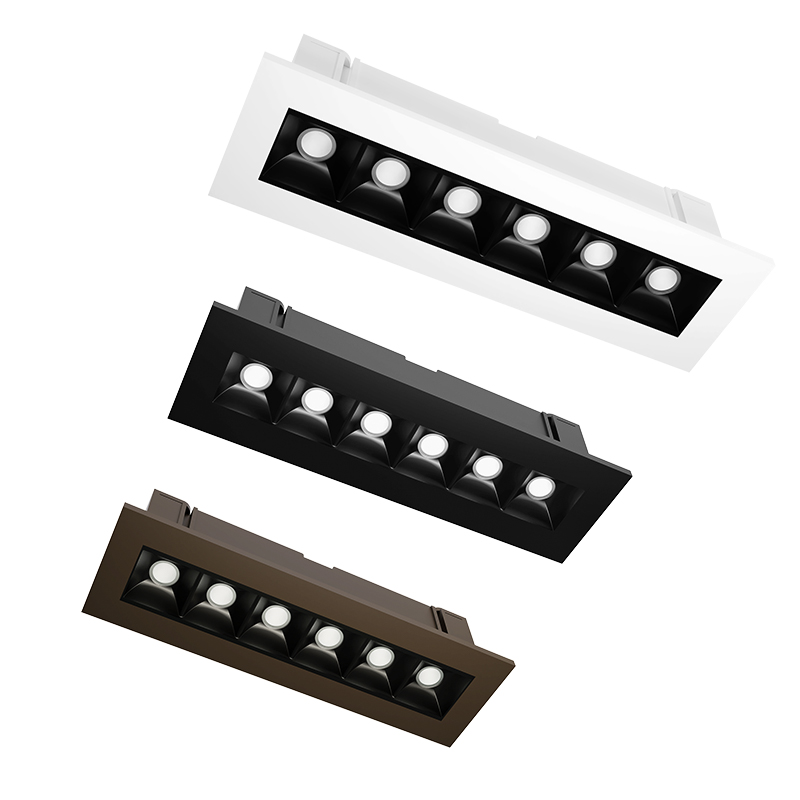

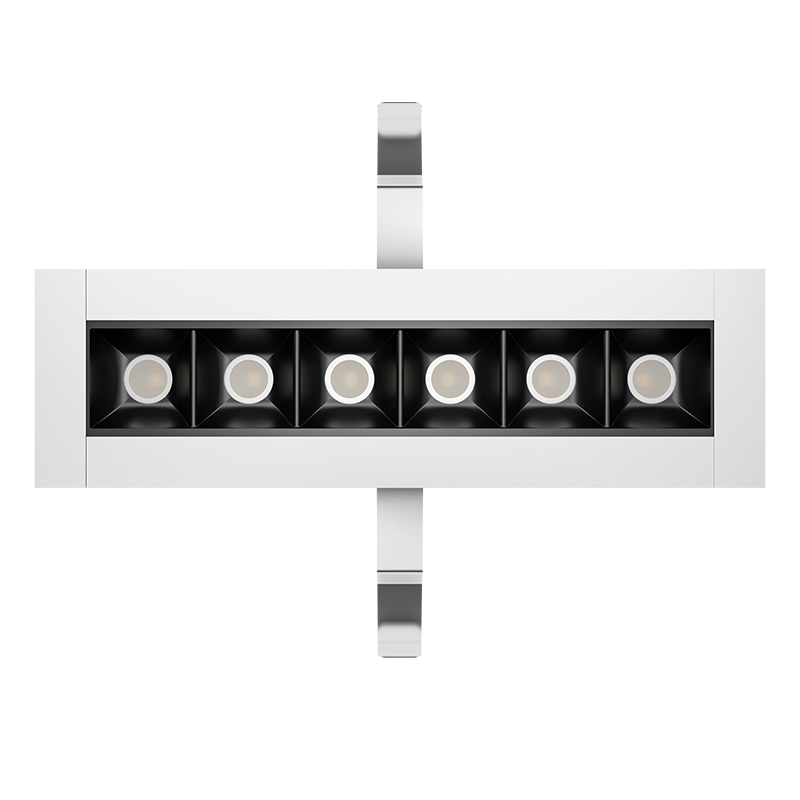

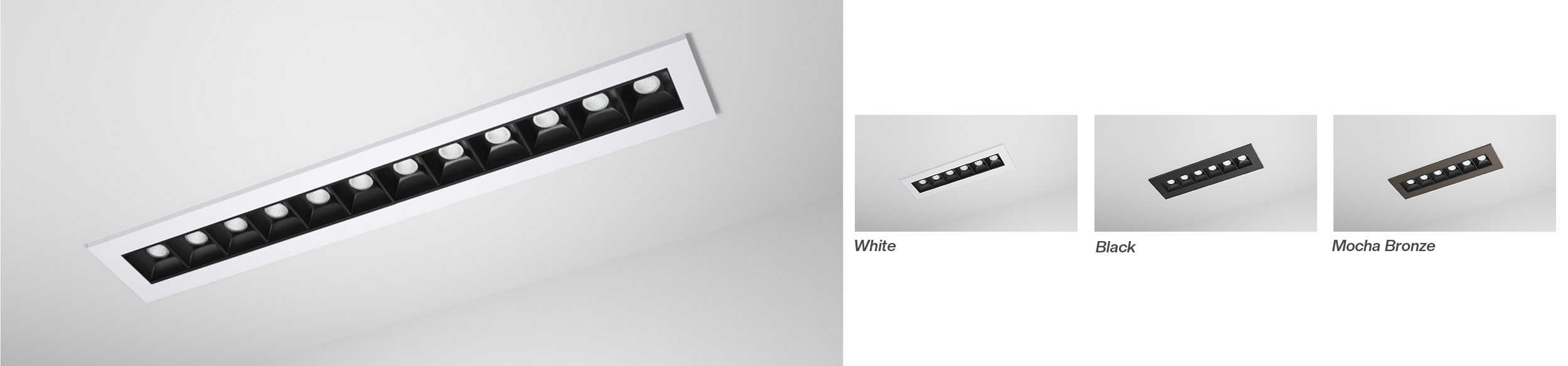

Linear Light (Square bevel)
Modular Splicable Linear Lighting for High-End Architectural Spaces.
Seamless Customization: Innovative modular design allows multiple 6-head units to be spliced into longer continuous linear runs (12, 16, or 18 heads).
Precision Optics: Choose between 20°, 34°, or 48° beam angles for perfectly tailored accent or general illumination.
Efficient Installation: Integrated 5CCT technology and quick-connect push wire nuts simplify site-specific adjustments and rough-in wiring.

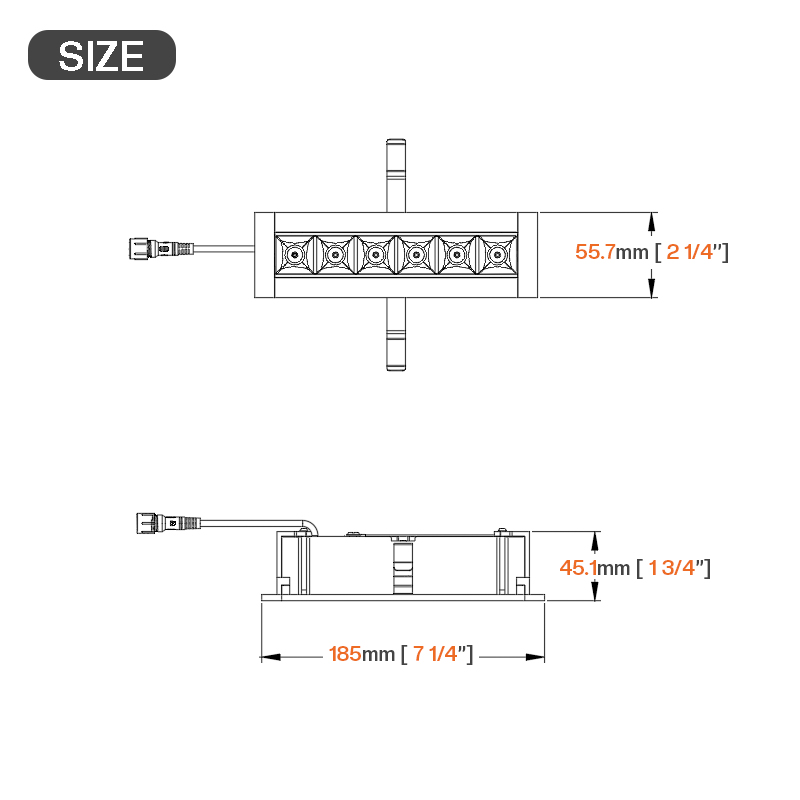

Multi-size Compatibility

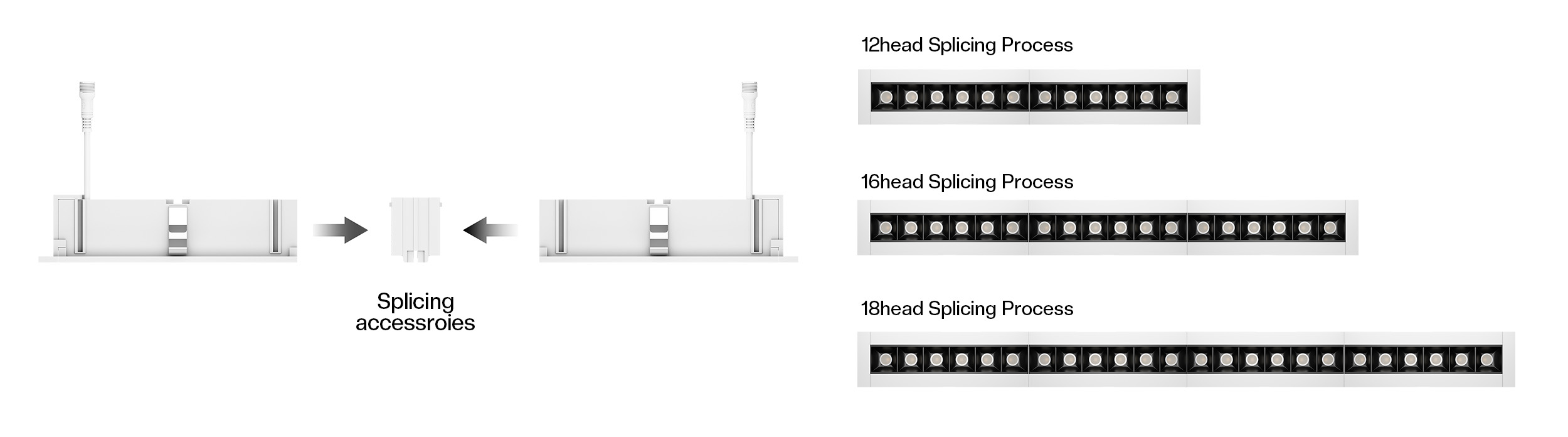

Seamless Splicing & Modular Process.
Unlock unlimited architectural possibilities with our modular splicing system. This square 6-head linear light can be interconnected using specialized splicing accessories to create 12-head, 16-head, or 18-head continuous lighting segments. This flexibility allows designers to create custom linear patterns that perfectly align with any ceiling length or room layout.
Product Features
Precision Beam Angle Options (20°/34°/48°): Achieve the exact lighting effect required for your project. Whether you need tight 20° accenting for displays, a standard 34° for general retail, or a wide 48° for smooth task illumination, this multiple recessed light provides professional-grade optical control to minimize glare and maximize visual impact.

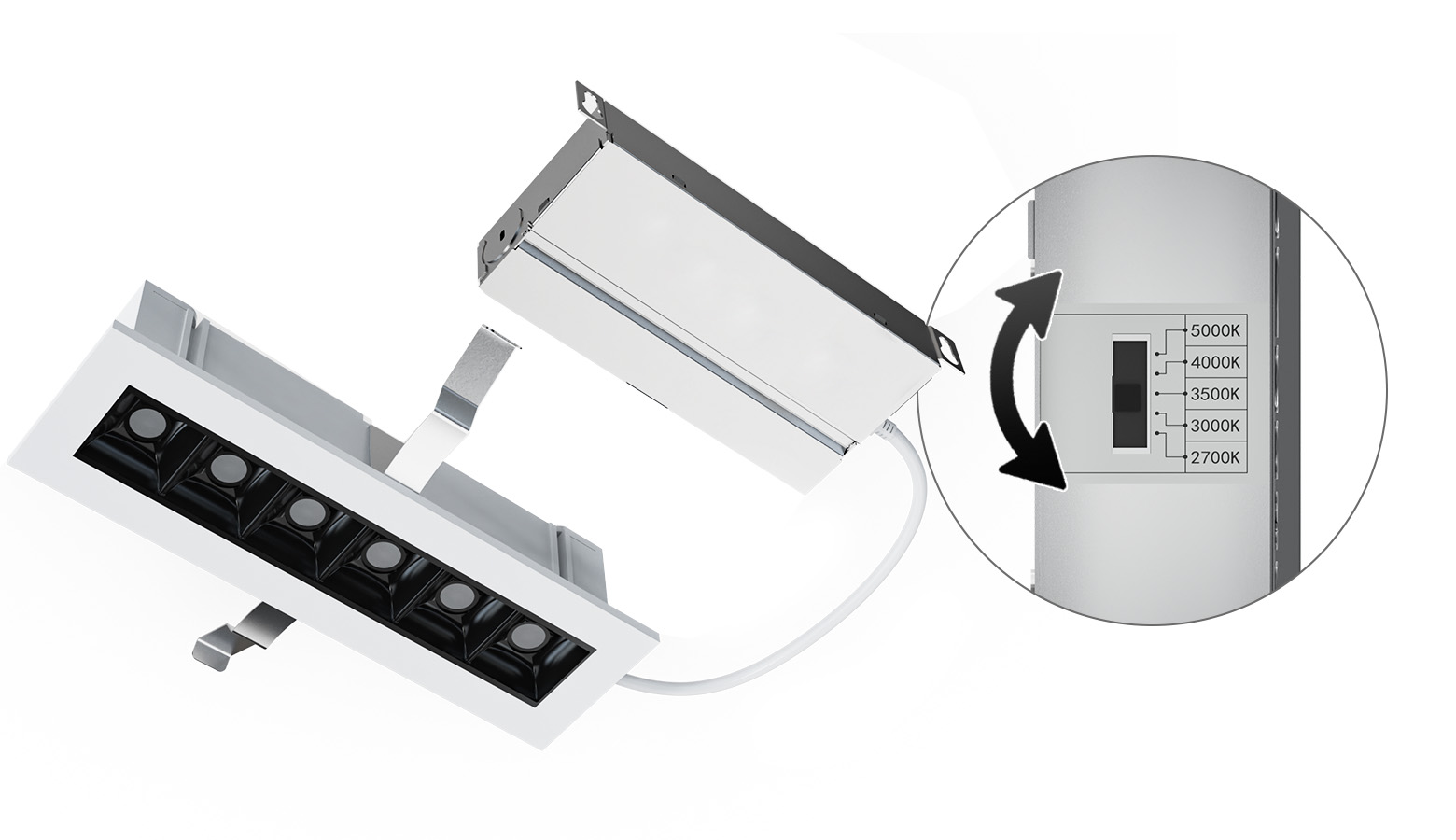

5CCT Selectable Technology
Streamline your inventory and meet every client's needs with the integrated 5CCT selector. Easily toggle between 2700K, 3000K, 3500K, 4000K, and 5000K color temperatures on-site. This ensures the lighting ambiance can be finalized during installation to complement the interior finishes.
One Light, Five Experiences.
From warm and cozy to clear and energizing, five selectable color temperatures let you create the perfect atmosphere for every space. Choose 2700K for a soft, inviting glow, 3000K for warm everyday comfort, 3500K for a natural and versatile balance, 4000K for clean and focused illumination, or 5000K for bright, crisp visibility.
Quick-connect terminals
Engineered for contractor efficiency, the pre-wired junction box features high-spec quick-connect push wire nuts. This tool-free design ensures secure, vibration-resistant electrical connections while significantly reducing installation time for large-scale multi-head linear projects.

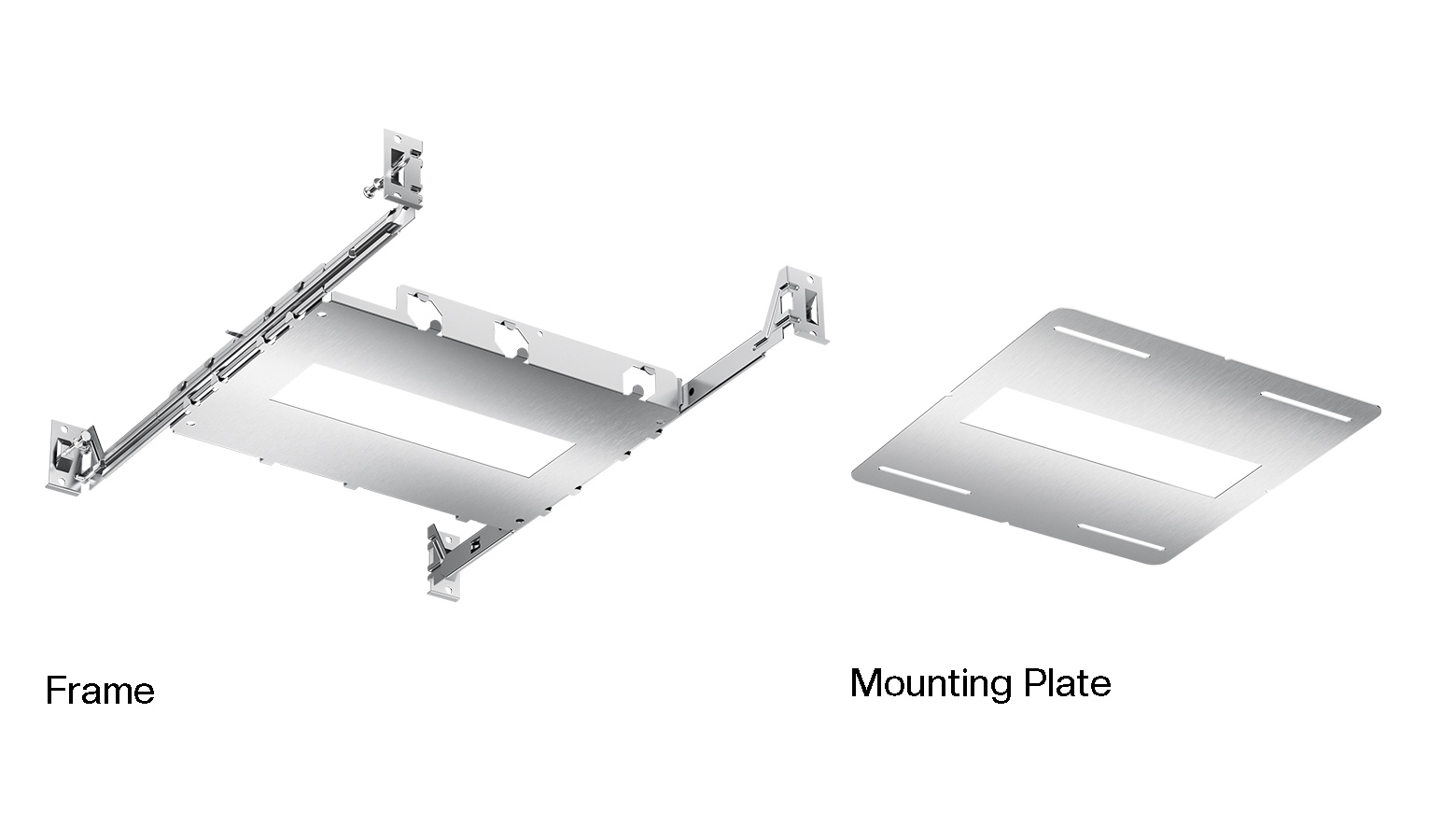

Compatible Mounting Plates & Frames
To ensure accurate alignment in new construction projects, this linear light is fully compatible with our dedicated Mounting Plates and Hanger Bar Frames. These accessories provide a stable mounting foundation, ensuring multiple spliced units remain perfectly straight and secure throughout the building's lifespan.
A：Yes, the 6-head units are designed for seamless splicing into configurations such as 12, 16, or 18-head linear runs.
A：We offer three optional precision beam angles: 20°, 34°, and 48°.
A：Absolutely. Each unit features quick-connect push wire nuts in the junction box for fast, tool-free electrical connections.

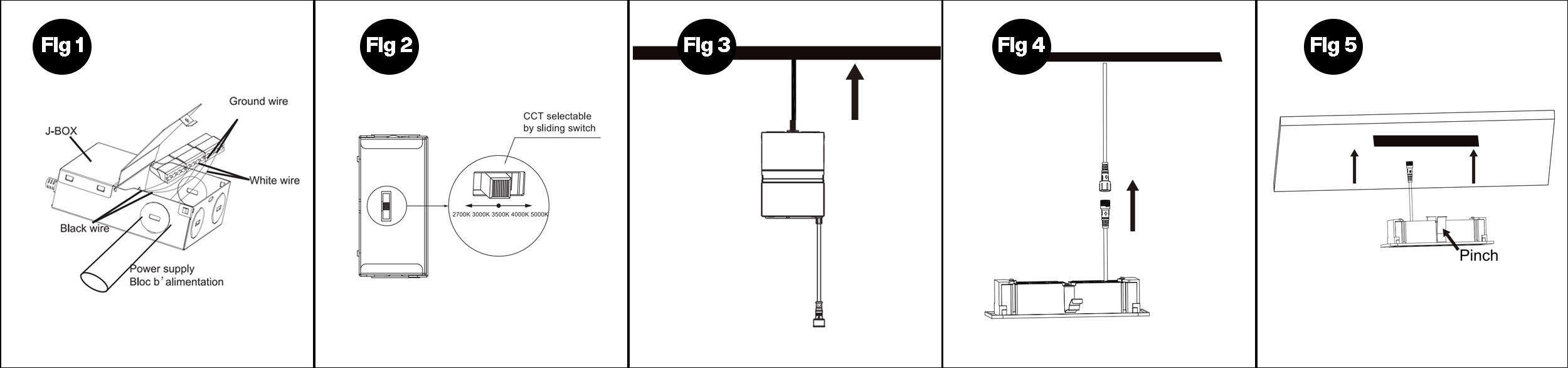

1. Open the hardwire box swing cover and remove the appropriate knockout(s).
Insert the electrical supply cable through the knockout and secure with a cable connector (sold separately).
Using wire nuts.Connect green ground wire of cable to green wire of box. Connect white wire of cable to white wire on box.Connect black wire of cable to black wire on box.
Place all wiring and connections back into box and close the cover. (Fig.1)

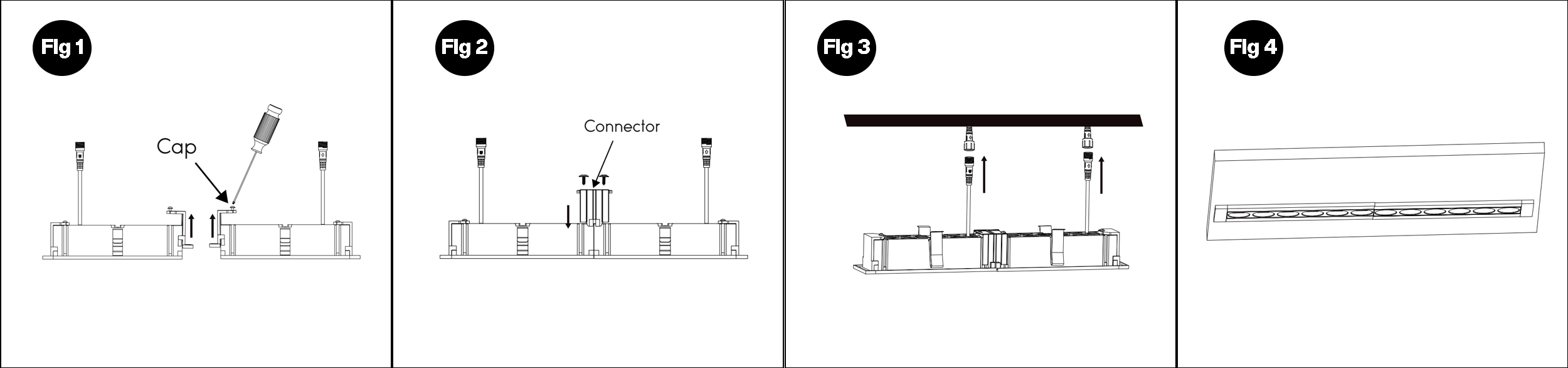

Installation Diagram for Splicing Connection
1. Remove one end cap from each fixture. (Fig.1)
2. Fasten two fixtures with a connector.(Fig.2)
3. Connect the fixture to the J-box in the ceiling. (Fig.3)
4. The installation is complete now. (Fig.4)
