6" Square Baffle Trim Can Light
High-performance LED retrofit solution for professional lighting.
Visual Comfort: Advanced Low Glare Baffle design with CRI 90+ for superior color accuracy.
Easy Upgrade: Seamlessly fits standard 6-inch recessed housings; ETL Listed, FCC and Title 24/JA8.
Versatile Use: Optimized for offices, retail spaces, hospitality, and modern residential renovations.

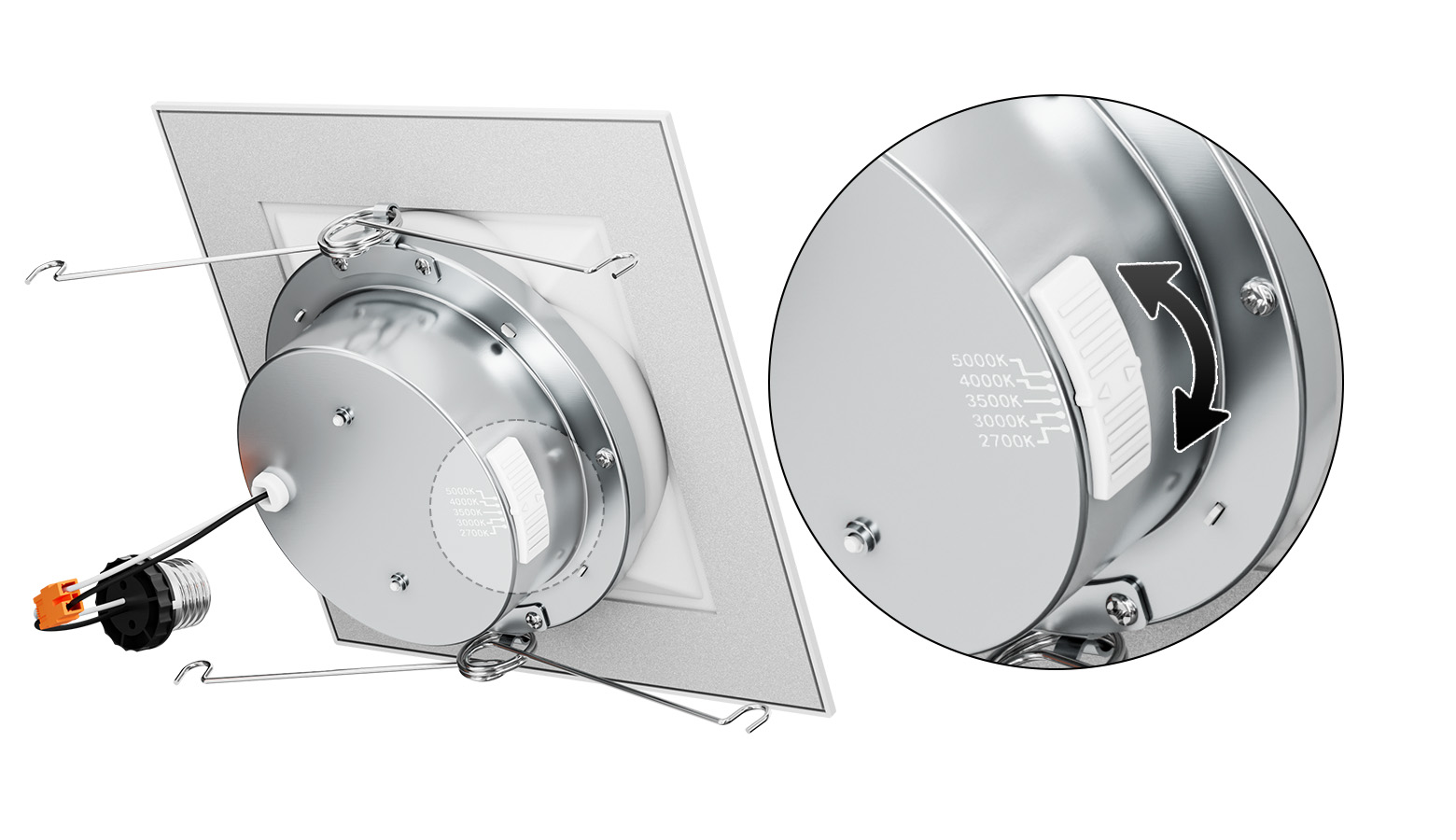

Adjustable 5-CCT DIP Switch
Selectable technology puts flexibility at your fingertips. By using the switch located on the back of the fixture, the user can choose from a range of five color temperatures from 2700K - 5000K.
5 CCT Selectable
One Light, Five Experiences.
From warm and cozy to clear and energizing, five selectable color temperatures let you create the perfect atmosphere for every space. Choose 2700K for a soft, inviting glow, 3000K for warm everyday comfort, 3500K for a natural and versatile balance, 4000K for clean and focused illumination, or 5000K for bright, crisp visibility.
Universal Fit for Any Housing

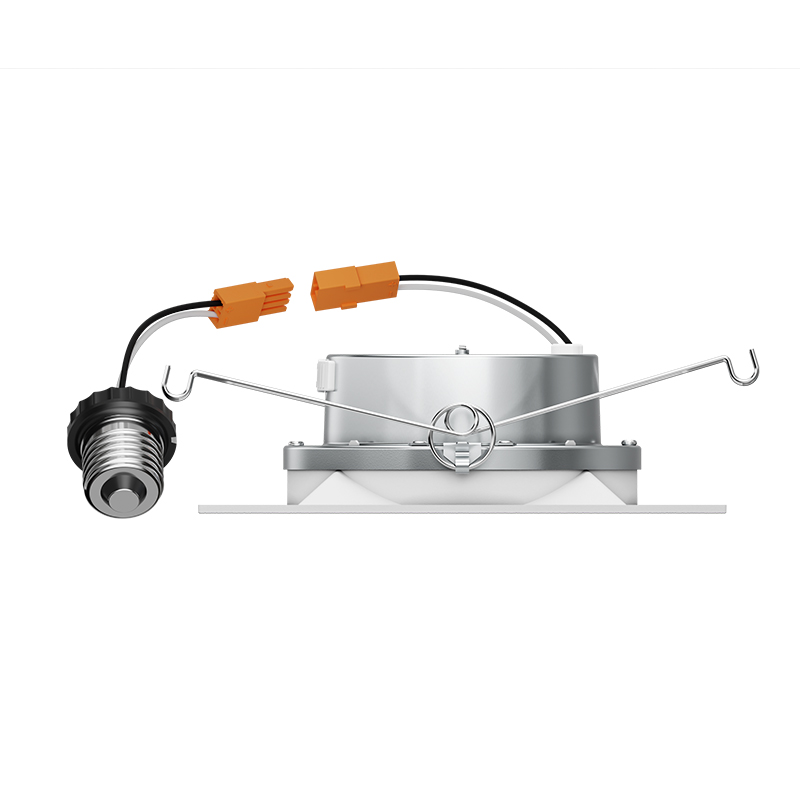

Includes a standard E26 adapter and TP24 connector for seamless integration into most existing 6" recessed cans. A tool-free, universal solution for both traditional and modern installations.
A: Yes, it is designed with a universal mounting system that secures the square trim firmly against the ceiling, covering any standard 6-inch round recessed can.
A: It features a high-quality, heat-dissipating housing with a durable finish to ensure long-term structural integrity and color consistency.
A: No, the driver is integrated into the fixture, allowing for a direct connection to your existing E26 or TP24 socket.
1. Make sure the power is turned off at the source to the recessedhousing(s) where the fixture(s) will be installed. Remove existing trimand CFL or incandescent bulbs.
2. Plug the female connector of the retrofit-kit into the male connector of housing assembly. (Fig. 2). If you used E26 socket,please screw E26 socket adapter into socket in housing. (Fig. 1)

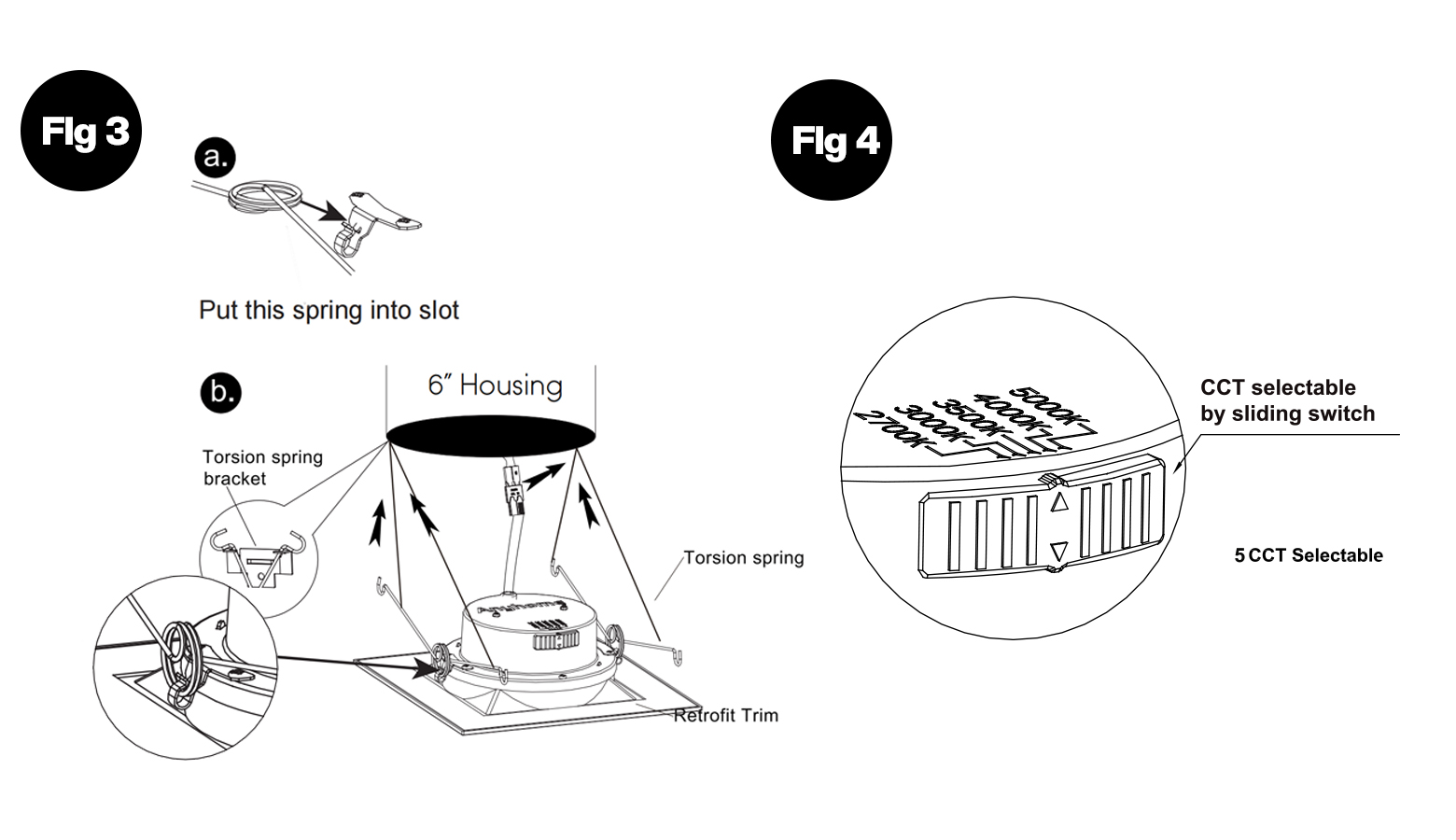

3. Put the spring into the slot first Squeeze the torsion springs together as shown and install into torsion spring brackets inside the housing. (Fig. 3)
4. Select desired color temperature by sliding switch on back of unit before installation.
(Available CCTs are 2700K,3000K,3500K,4000K,5000K .) (FIG.4)
