6" Round Baffle Trim Can Light -- 11W, 900LM

6" Round Baffle Trim Can Light -- 11W, 900LM

The Ultimate Contractor-Grade 6" Baffle Retrofit LED Downlight. Engineered for seamless integration into existing housings, this high-performance kit combines architectural-grade glare control with advanced 5CCT selectable technology. It is the perfect all-in-one solution for any commercial or residential project, designed to drastically reduce installation time and inventory complexity.

Model :
EDH606B-PA-5C-S-WH
Wattage :
11W
Lumen :
900 LM
Color Temperature :
2700K/3000K/3500K4000K/5000K
Voltage :
120V / 60HZ
CRI :
90
Average Life :
50000H
Certificate :
ETL,Title 24/JA8,FCC

Inquiry now

6" Round Baffle Trim Can Light

High-performance LED retrofit solution for professional lighting.

Visual Comfort: Advanced Low Glare Baffle design with CRI 90+ for superior color accuracy.

Easy Upgrade: Seamlessly fits standard 6-inch recessed housings; ETL Listed, FCC and Title 24/JA8.

Versatile Use: Optimized for offices, retail spaces, hospitality, and modern residential renovations.

Adjustable 5-CCT DIP Switch

Selectable technology puts flexibility at your fingertips. By using the switch located on the back of the fixture, the user can choose from a range of five color temperatures from 2700K - 5000K.

5 CCT Selectable

One Light, Five Experiences.

From warm and cozy to clear and energizing, five selectable color temperatures let you create the perfect atmosphere for every space. Choose 2700K for a soft, inviting glow, 3000K for warm everyday comfort, 3500K for a natural and versatile balance, 4000K for clean and focused illumination, or 5000K for bright, crisp visibility.

Universal Fit for Any Housing

Includes a standard E26 adapter and TP24 connector for seamless integration into most existing 6" recessed cans. A tool-free, universal solution for both traditional and modern installations.

Q1: What is the fire rating of this light?

A: This fixture is designed and tested for 2-hour fire-rated ceiling applications.

Q2: What is the flame retardant grade of the cable?

A: The fixture is equipped with a premium FT6 (Plenum) rated flame retardant cable for maximum safety.

Q1: Can I install this in a shower or bathroom?

A: Yes, it is Wet Location rated and ETL certified for installation in damp or wet environments.

Installation for LED 5"/6" Retrofit Trim

1. Make sure the power is turned off at the source to the recessedhousing(s) where the fixture(s) will be installed. Remove existing trimand CFL or incandescent bulbs.

2. Plug the female connector of the retrofit-kit into the male connector of housing assembly. (Fig. 2). If you used E26 socket,please screw E26 socket adapter into socket in housing. (Fig. 1)

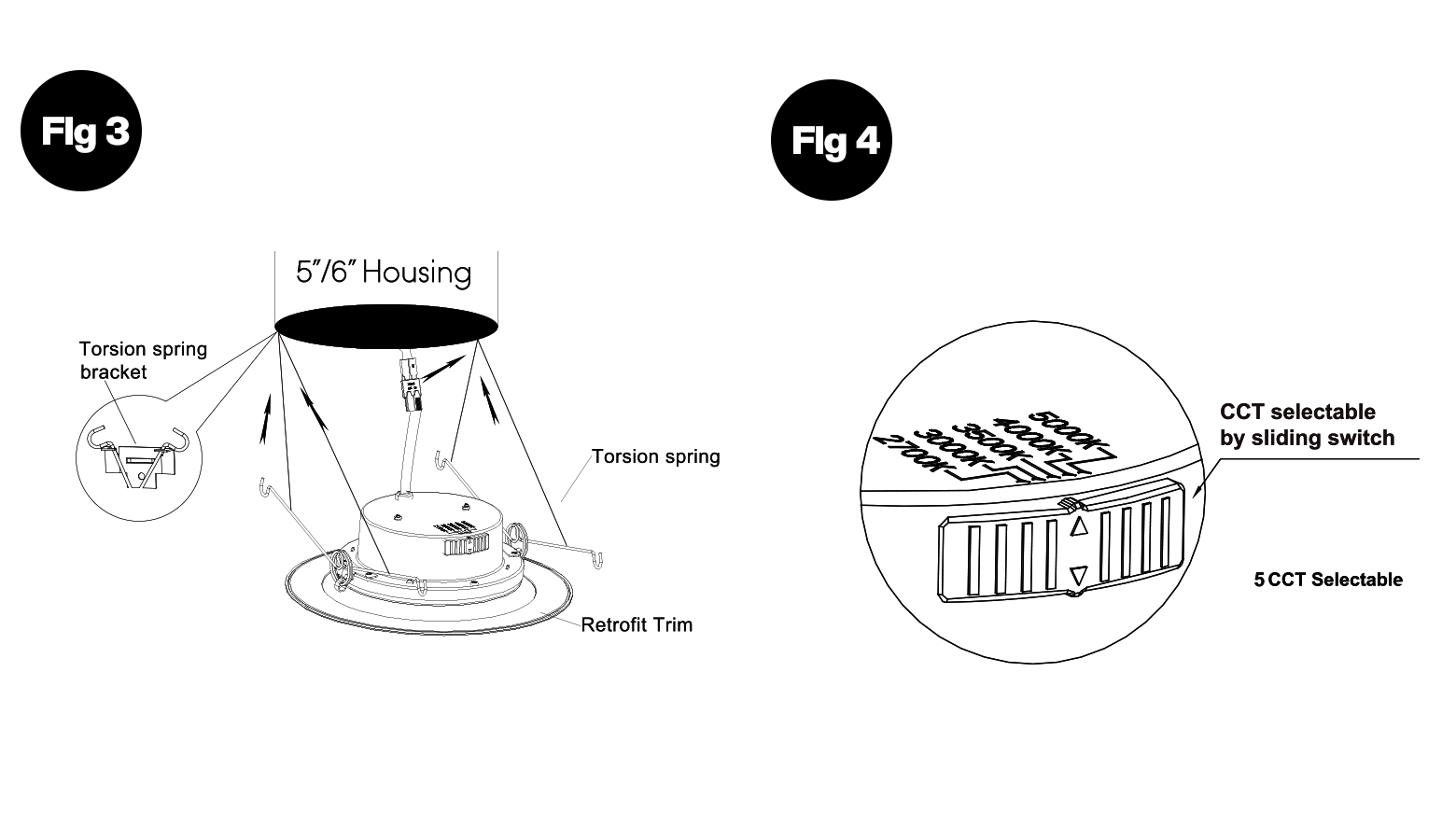

3. Squeeze the torsion springs together as shown and install intotorsion spring brackets inside the housing.Tuck all wire into the housing and carefully push the RETROFIT TRIMup flush to ceiling surface.(Fig. 3)

4. Select desired color temperature by sliding switch on back of unit before installation.

(Available CCTs are 2700K,3000K,3500K,4000K,5000K .) (FIG.4)
