3" / 4" / 6" Round Hole New Construction Mounting Plate
Adjustable Mounting Support for Flexible Recessed Lighting Layouts.
Multi-Size Compatibility: Designed for 3-inch, 4-inch, and 6-inch LED recessed lights.
Adjustable Positioning: 8 1/4 - 25 1/8-inch range adapts to different framing layouts.
Project Ready: Galvanized sheet construction for new construction and remodel installations.
Product Features
Snap-off: The hanger bars hasrecessed section that can besnapped off to accommodate shorter beam spacing.
Lock-in : The product featuresholes for fixing the junction box,facilitating secure installation.
Multi-size Compatibility
One Frame. Three Sizes. More Flexibility.
Compatible with 3", 4", and 6" LED fixtures, allowing one housing frame to support multiple fixture sizes for easier product selection, installation, and inventory management.
Adjustable Hanger Bars
Adjustable or breakaway design to fit different installation distances. The Hanger Bars can beadjusted according toneeds: 8 1/4"- 25 1/8".
A：It is designed for compatible 3-inch, 4-inch, and 6-inch LED recessed lights.
A：The mounting plate adjusts from 8 1/4 to 25.20 inches.
A：Yes, it for both new construction and remodel applications.
Installation for 3" / 4" / 6" New Construction Mounting Plate

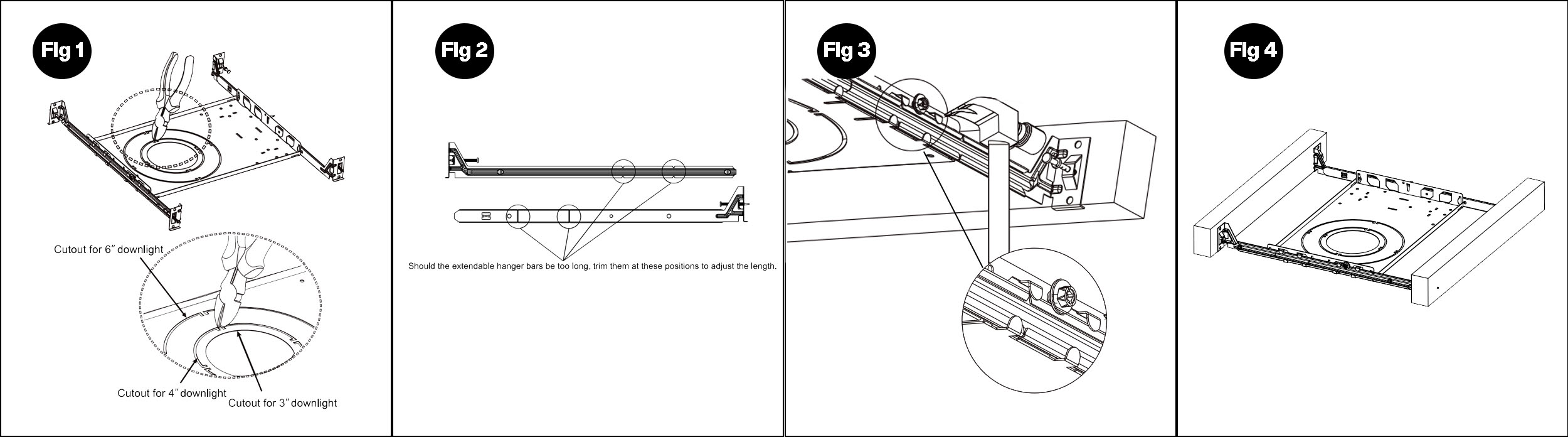

1. Choose the proper size according to the size of your downlight. Using pliers cut the joint. (Fig.1)
2. Adjust the extendable hanger bars as needed. Adjustment range: 9 1/16 - 25 13/64 inch. (Fig.2)
3. Choose the appropriate Hanger Bars length, drive the nails into the wooden beam, and tighten the screws on the side to complete the installation. (Fig.3)
4. Installation completed. (Fig.4)
