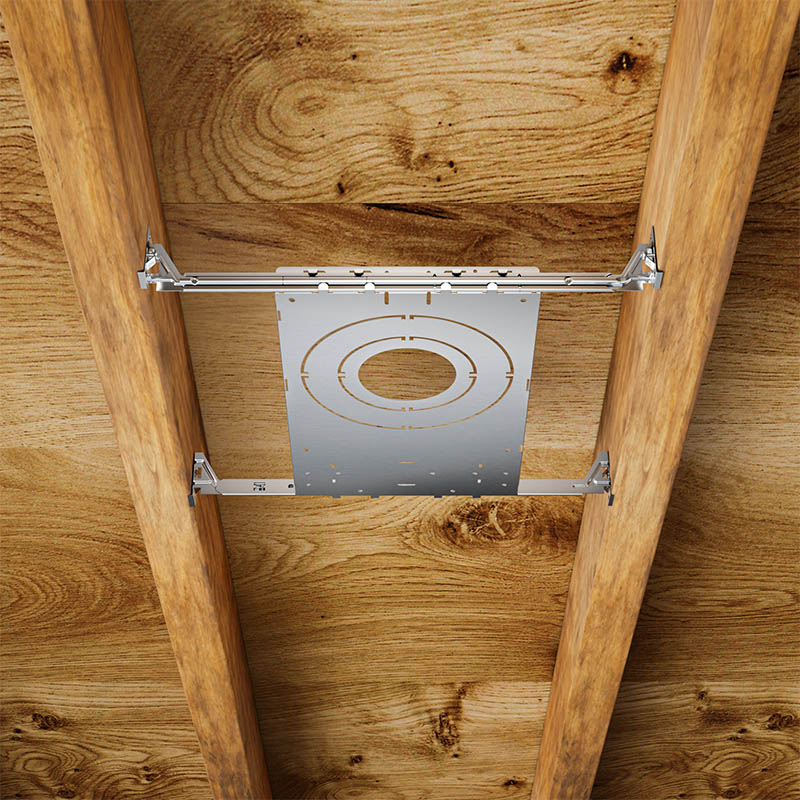

3" / 4" / 6" New Construction Mounting Plate

Product Features

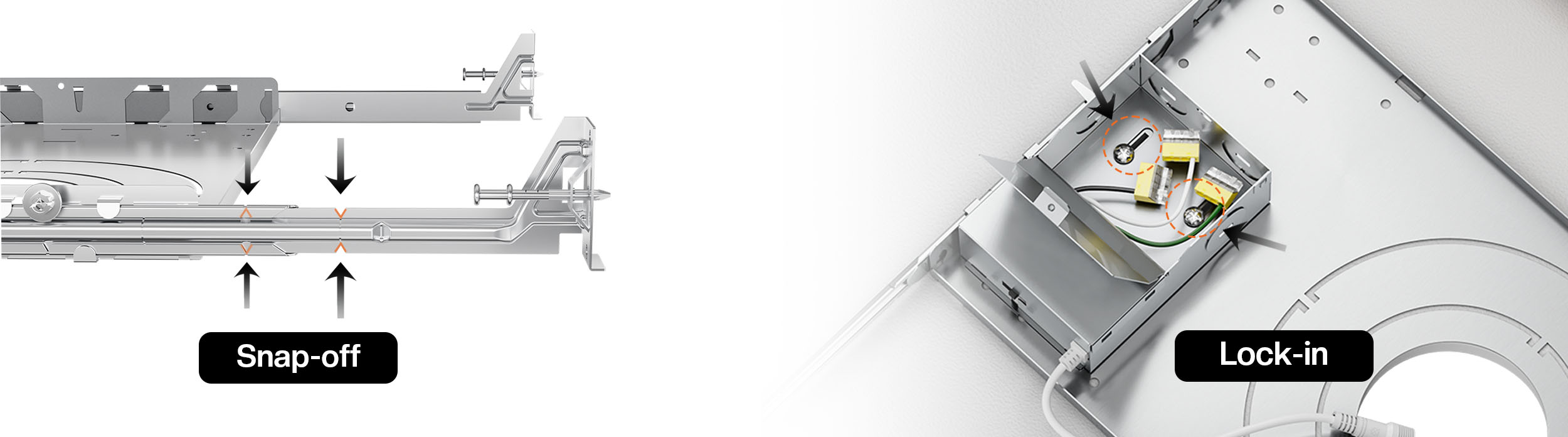

Snap-off: The hanger bars hasrecessed section that can besnapped off to accommodate shorter beam spacing.

Lock-in : The product featuresholes for fixing the junction box,facilitating secure installation.

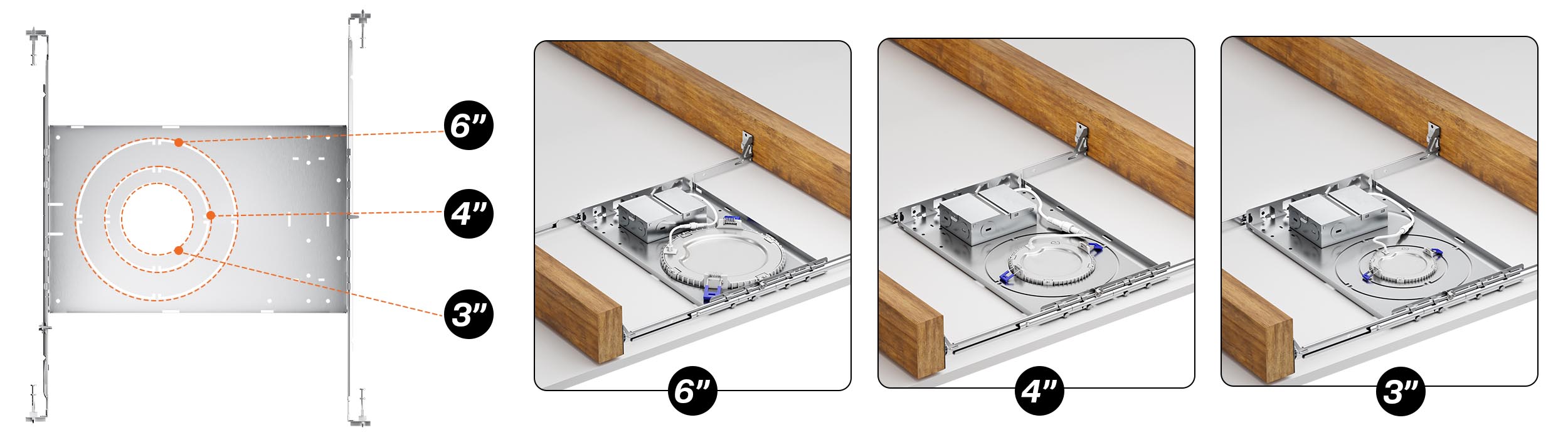

Multi-size Compatibility

One Frame. Three Sizes. More Flexibility.

Compatible with 3", 4", and 6" LED fixtures, allowing one housing frame to support multiple fixture sizes for easier product selection, installation, and inventory management.

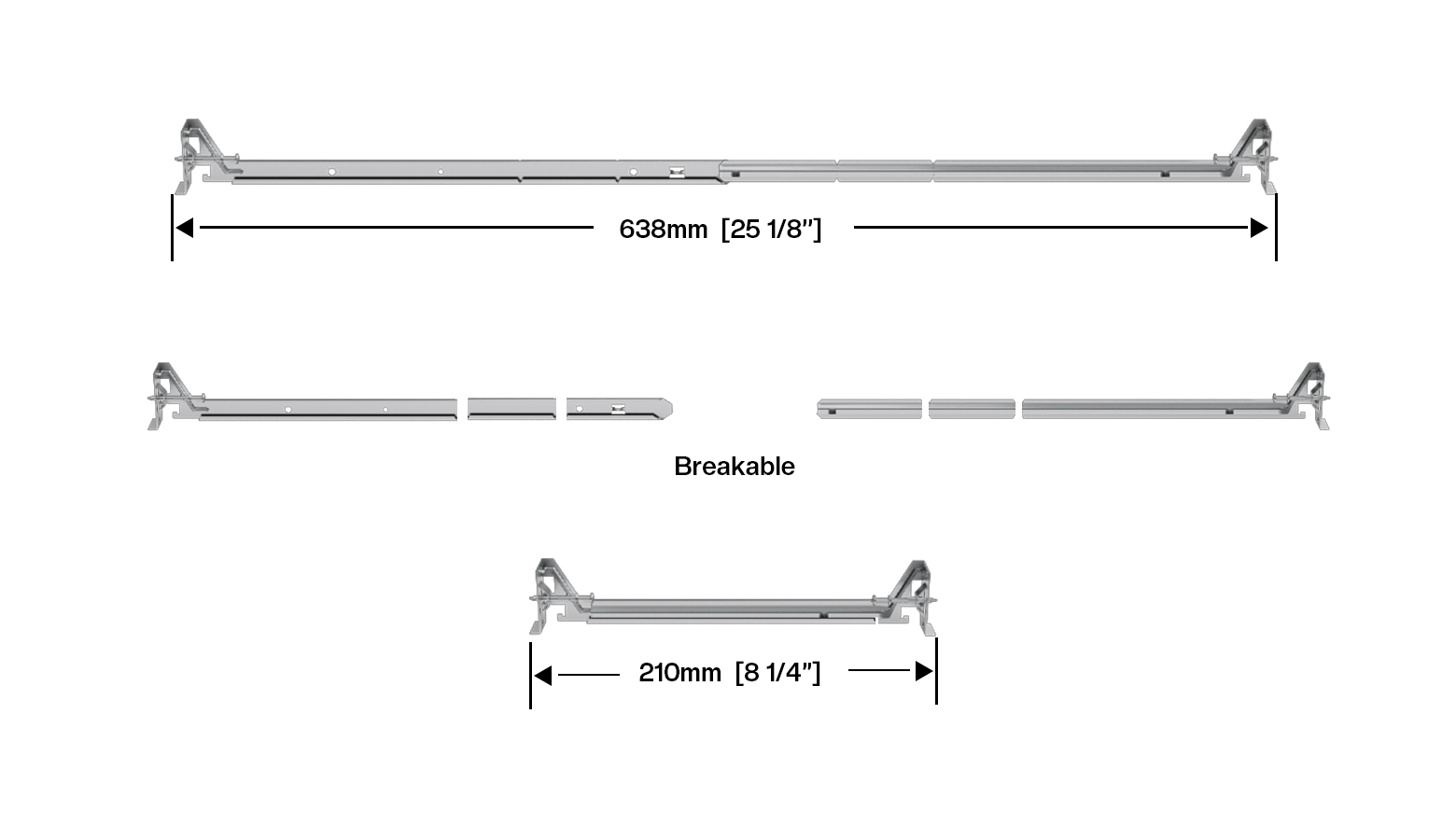

Adjustable Hanger Bars



Adjustable or breakaway design to fit different installation distances. The Hanger Bars can beadjusted according toneeds: 8 1/4"- 25 1/8".

•



Installation Instructions

Installation for LED  5"/6"  Retrofit Trim



1. Make sure the power is turned off at the source to the recessedhousing(s) where the fixture(s) will be installed. Remove existing trimand CFL or incandescent bulbs.



2. Plug the female connector of the retrofit-kit into the male connector of housing assembly. (Fig. 2). If you used E26 socket,please screw E26 socket adapter into socket in housing. (Fig. 1)





3. Squeeze the torsion springs together as shown and install intotorsion spring brackets inside the housing. (Fig. 4)



4. Tuck all wire into the housing and carefully push the RETROFIT TRIMup flush to ceiling surface.



---









Q1：What recessed light sizes does this mounting plate support?

A：It is designed for compatible 3-inch, 4-inch, and 6-inch LED recessed lights.

Q2：What is the adjustable range?

A：The mounting plate adjusts from 8 1/4 to 25.20 inches.

Q3：Can it be used for remodel projects?

A：Yes, it for both new construction and remodel applications.
