4" Round Smooth Trim Wafer Light
Ultra-Thin Recessed Lighting for Modern Professional Spaces.
Versatile Color Control: 5CCT selectable technology (27K to 50K) allows for on-site ambiance adjustment.
Contractor-Friendly Install: Integrated junction box with quick-connect push wire nuts drastically reduces labor time.
High-Performance Spec: CRI 90 and PF 0.9 ensure superior color rendering and electrical efficiency in wet or dry locations.
5CCT Selectable Technology

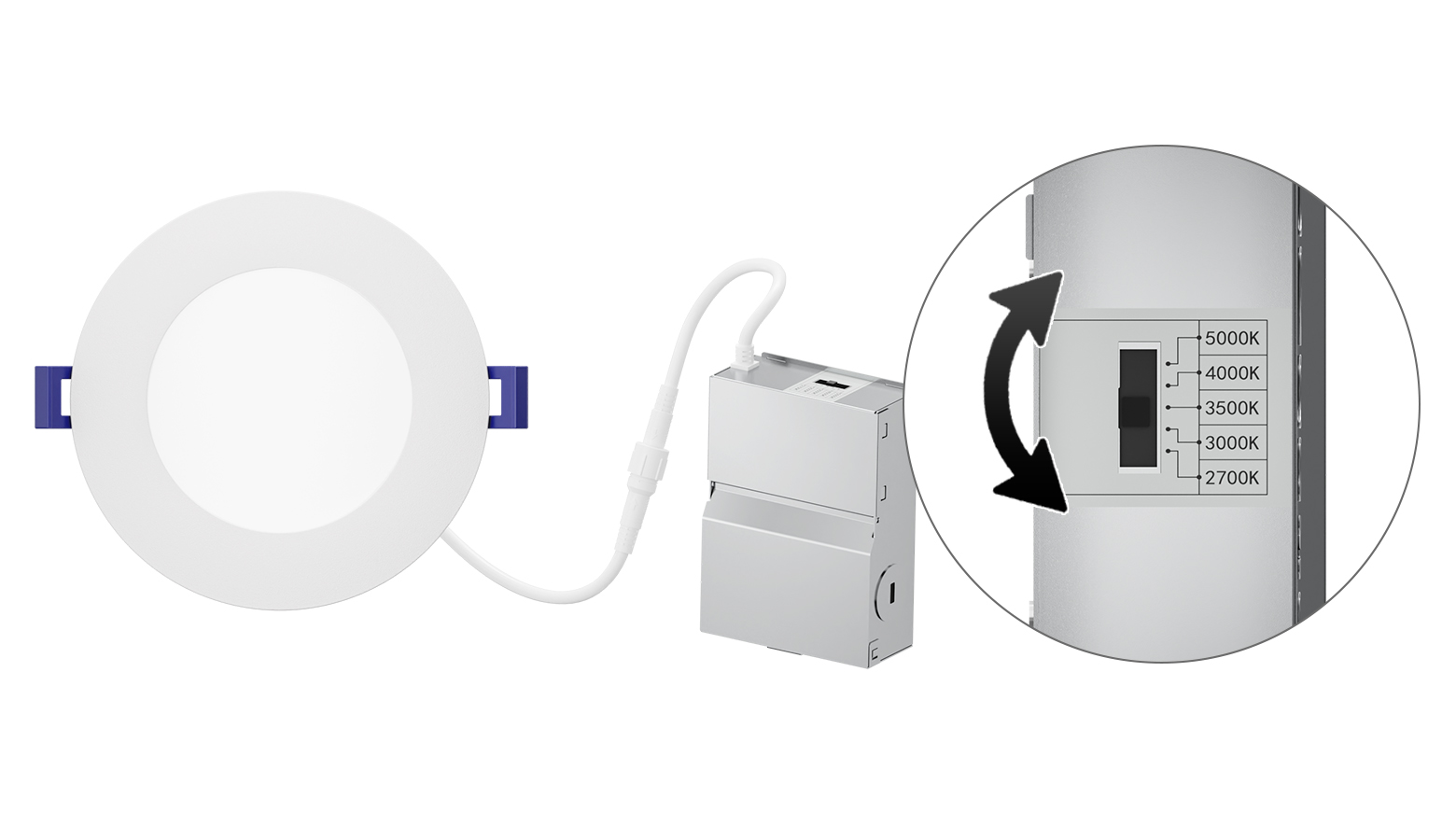

Equipped with an on-fixture toggle switch, this wafer light allows you to choose between five color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K. This "one-SKU" solution provides ultimate flexibility for different room functions and helps distributors reduce inventory complexity.
From warm and cozy to clear and energizing, five selectable color temperatures let you create the perfect atmosphere for every space. Choose 2700K for a soft, inviting glow, 3000K for warm everyday comfort, 3500K for a natural and versatile balance, 4000K for clean and focused illumination, or 5000K for bright, crisp visibility.
The pre-installed junction box features advanced quick-connect push wire nuts, enabling faster and more secure electrical connections without the need for additional wire connectors. This design streamlines the rough-in process, making it a preferred choice for large-scale B2B projects.
Compatible Mounting Plates & Frames
To support diverse installation requirements, this wafer light is fully compatible with our New Construction Mounting Plates and Hanger Bar Frames. These accessories provide stable positioning and support during the framing stage of new construction projects.
A：Yes, it is Wet Location rated and ETL certified for damp or wet environments.
A：Yes, the 5CCT switch is located on the junction box for easy selection during installation.
A：No, the canless wafer design allows for direct installation into the ceiling with the included junction box.

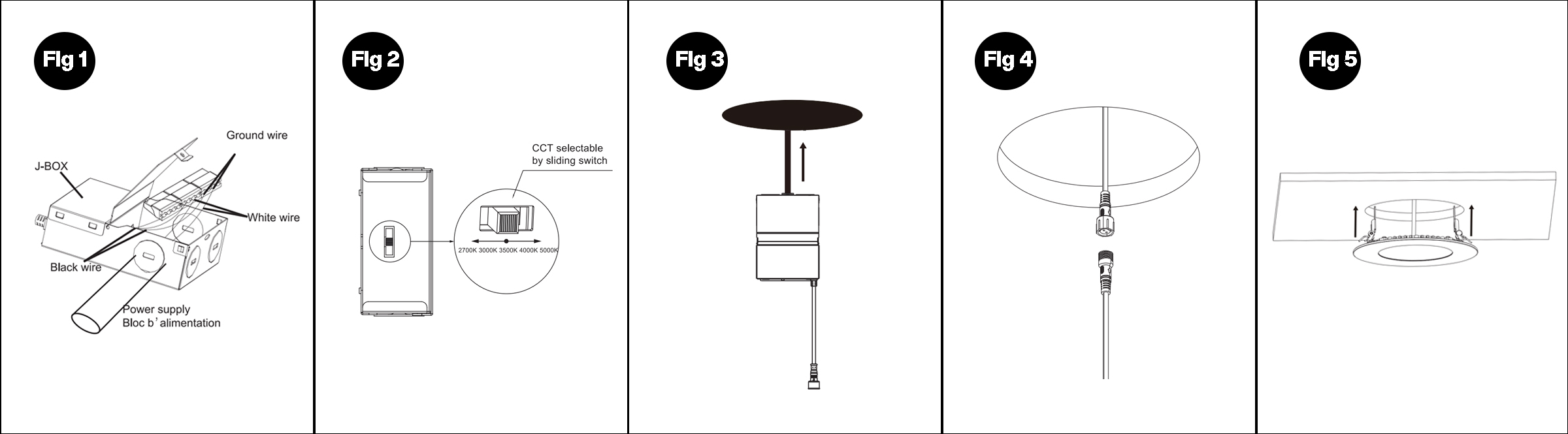

1. Open the hardwire box swing cover and remove the appropriate knockout(s).
Insert the electrical supply cable through the knockout and secure with a cable connector (sold separately).
Using wire nuts.Connect green ground wire of cable to green wire of box. Connect white wire of cable to white wire on box.Connect black wire of cable to black wire on box.
Place all wiring and connections back into box and close the cover. (Fig.1)
2. Select desired color temperature by sliding switch on Power box of unit.(Available CCTs are 2700K,3000K,3500K,4000K,5000K.) (Fig.2)
3. Insert hardwire box through the mounting hole.(Fig.3)
4. Connect the fixture to the hardwire box by inserting and twisting the quick disconnect assembly male/female. (Fig.4)
5. Push spring loaded clips on the fixture upwards and insert fixture through the mountinghole vertically, clips first. Release the clips and fixture will be pulled flush to the ceiling. (Fig.5)
